Matek Systems MATEKSYS F405-Wing Flight Controller
Exсluѕіvе Dіѕсоunt 70% Prісе Matek Systems MATEKSYS F405-Wing Flight Controller A quick review
So you can check out the other reviews at Amazon.com
only with $
| Brand | Matek Systems |
| Color | Black |
| Media Type | SD, SDHC, Micro SD |
| Item Weight | 0.1 Pounds |
| Age Range (Description) | Adult |
| Battery Cell Composition | Lithium Polymer |
- INAV Flight
- Target: MATEKF405SE
- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- 2x ESC power pads
- Current Senor: 104A, 3.3V ADC, Scale 317
Product Description
Matek's F405-Wing is the premier flight controller made specifically for FPV wing aircraft. Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly. INAV OSD, Blackbox, VCP and 6 UARTS, room for 2 motors and 7 servo outputs, 4 BEC and more. It might be easier just to read the spec sheet.
SpecificationsMCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: INAV OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP & 6x UARTs
2x Motors, 7x Servos outputs
2x I2C
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2 pad
Battery Voltage Sensor: 1:10 (Scale 1100)
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
FC Firmware
- INAV Flight
- Target: MATEKF405SE
PDB
- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- 2x ESC power pads
- Current Senor: 104A, 3.3V ADC, Scale 317
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps, Max.3A

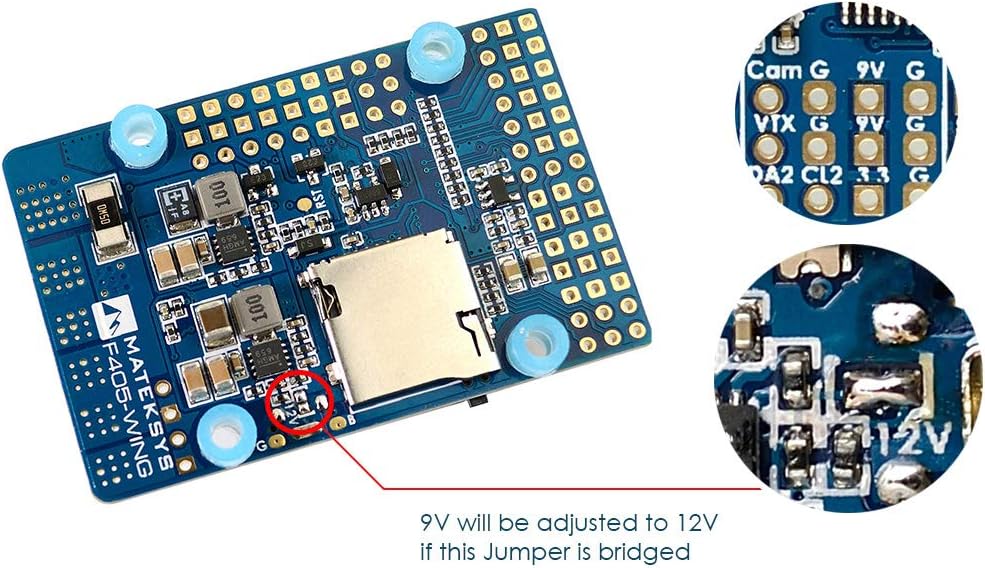

- 12V option with Jumper pad
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 5 Amps, Max.6A
- Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output
- Designed for Baro / Compass module and Spektrum RX
- Linear Regulator
- Continuous current: 500mA
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommet
